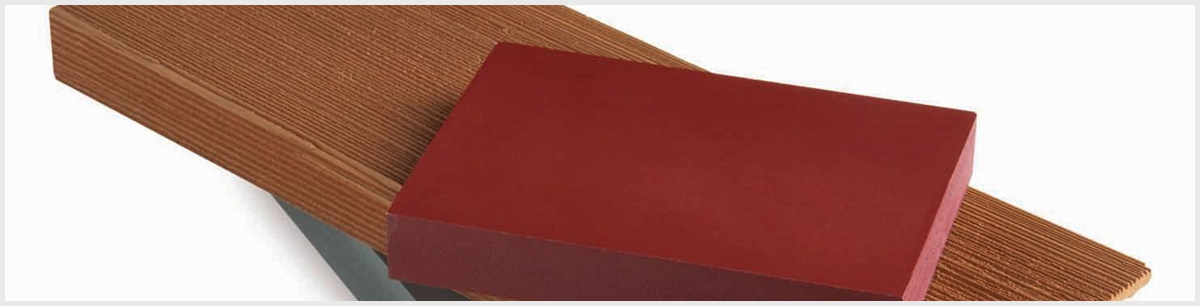

NuCedar Specialty Trim
Grade Planks (Water Tables)
| Thickness | 3/4" & 1" | |
 | Widths | 5-1/2" 7-1/4" 9-1/4" |
| Lengths | 18ft | |
| Textures | All 3 Available | |
| CAD | Grade Plank CAD |
*All Sizes are ACTUAL
J-Pocket Trim
| Thickness | 1" | |
 | Widths | 3-1/2" 9-1/4" 5-1/2" 11-1/4" 7-1/4" |
| Lengths | 18ft | |
| Pocket Size | 3/4" x 3/4" Dado | |
| Textures | All 3 Available | |
| CAD | 4" J-Pocket Trim CAD 6" J-Pocket Trim CAD |
*All Sizes are ACTUAL
Double J-Pocket Trim
| Thickness | 1" | |
| Widths | 4" 9-1/4" 5-1/2" 11-1/4" 7-1/4" | |
| Lengths | 18ft | |
| Pocket Size | Both Sides 3/4" x 3/4" Dado | |
| Textures | All 3 Available | |
| CAD | 4in Double J-Trim 6in Double J-Trim |
*All Sizes are ACTUAL
J-Pocket Cornerboards
| Thickness | 1" | |
 | Widths | 3-1/2" x 3-1/2" 5-1/2" x 5-1/2" |
| Lengths | 18ft | |
| Pocket Size | Both Sides 3/4" x 3/4" Dado | |
| Textures | All 3 Available | |
| CAD | 4in J-Corner CAD 6in J-Corner CAD |
*All Sizes are ACTUAL
Universal Trim and Corner
Traditional homes are recognized for butted cedar clapboard around windows, doors and corners. Thanks to NuCedars Universal Trim it is now a snap to recreate this rich look on your home.
Universal Trim has a built-in retainer and milled chalk line mark that make it easy to accommodate expansion and contraction of clapboard runs up to 48 feet. Perhaps the most unique feature is that it accepts NuCedars proprietary Snap-In Inserts which, once installed, give the look of butted cedar.
Universal Trim
| Thickness | 1" | |
 | Widths | 4" 9-1/4" 5-1/2" 11-1/4" 7-1/4" |
| Lengths | 18ft | |
| Pocket Sizes | 9/16" x 2" | |
| Textures | All 3 Available | |
| CAD | 4in Un. Trim CAD 6in Un. Trim CAD |
Universal Corner
| Thickness | 1" | |
 | Widths | 5-1/2" x 5-1/2" |
| Lengths | 20ft | |
| Pocket Size | 9/16" x 2" | |
| Textures | All 3 Available | |
| CAD | 6in Un. Corner CAD |
*All Sizes are ACTUAL
Header Trim
| Thickness | 1" | |
 | Width | 4" 5-1/2" |
| Length | 18ft | |
| Pocket Size | 3/4" x 9/16" | |
| Textures | All 3 Available | |
| CAD | 4in Header Trim CAD 6in Header Trim CAD |
Window Trim w/ Flange
| Thickness | 1" | |
| Widths | 3-1/2" 5-/12" 7-1/4" | |
| Lengths | 18ft | |
| Textures | Smooth or Woodgrain | |
| CAD | 4" Window Trim w/ Flange 6" Window Trim w/ Flange |
*All Sizes are ACTUAL
J-Trim w/ Flange
| Thickness | 1" | |
| Widths | 3-1/2" 5-1/2" 7-1/4" | |
| Lengths | 18ft | |
| Textures | Smooth or Woodgrain | |
| CAD | 4" J-Trim w/ Flange 6" J-Trim w/ Flange |
*All Sizes are ACTUAL
Color
Only 1 Surface and the sides are painted. All Trim is available in 15 standard colors, that are listed below. Some Custom Colors are allowed.
15 Standard Colors
Due to individual computer monitor limitations, colors seen here may not accurately reflect NuCedar coating colors. Please see actual product samples for true color.
